MTX400 0.6/1kV XLPE绝缘，LSOH（SHF1）护套，阻燃电力&控制缆（多芯）
应用
该电缆适用于船体上任何需要电缆保护位置的固定安装。该电缆阻燃、低烟、无卤。
ll IEC 60092-350/351/353/359
ll IEC 60332-1
ll IEC 60332-3-22
ll IEC 60754-1/2
ll IEC 61034

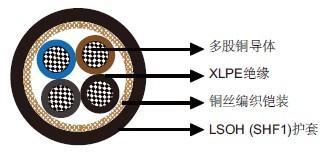

结构
导体：Class 2多股铜导体，圆形或扇形。Class 5多股铜导体可选。
绝缘：XLPE。
内衬层：搭接带。
铠装：铜丝编织。
外护套：LSOH（SHF1）。SHF2可选。
.
线芯识别
两芯：蓝，棕。
三芯：棕，黑，灰。
四芯：蓝，棕，黑，灰。
五芯：蓝，棕，黑，灰，黑。
多芯：白底色加黑色数字。
带黄/绿线（可选）
两芯+地线（3G）：黄/绿，蓝，棕。
三芯+地线（4G）：黄/绿，棕，黑，灰。
四芯+地线（5G）：黄/绿，蓝，棕，黑，灰。
.
物理性能
固定安装弯曲半径: 6×OD
温度范围: -30℃ ~ +80℃
尺寸和重量
MTX400 1RMZ1-R多芯0.6/1kV（-R表示class 2导体。对于class 5导体，请将-R改成-F）
订货代码 |
结构 |
标称绝缘厚度 |
标称护套厚度 |
标称外径 |
标称重量 |
MTX400-1RMZ1-R-2C1.5 |
2×1.5 |
0.7 |
1.1 |
9.3 |
120 |
MTX400-1RMZ1-R-2C2.5 |
2×2.5 |
0.7 |
1.1 |
10.1 |
150 |
MTX400-1RMZ1-R-2C4 |
2×4 |
0.9 |
1.2 |
12.2 |
195 |
MTX400-1RMZ1-R-2C6 |
2×6 |
0.9 |
1.2 |
13.7 |
275 |
MTX400-1RMZ1-R-2C10 |
2×10 |
0.9 |
1.3 |
15.7 |
385 |
MTX400-1RMZ1-R-2C16 |
2×16 |
0.9 |
1.4 |
18.4 |
595 |
MTX400-1RMZ1-R-2C25 |
2×25 |
0.9 |
1.5 |
21.3 |
820 |
MTX400-1RMZ1-R-2C35 |
2×35 |
0.9 |
1.5 |
23.9 |
1140 |
MTX400-1RMZ1-R-2C50 |
2×50 |
1.0 |
1.5 |
26.7 |
1500 |
MTX400-1RMZ1-R-3C1.5(3G1.5) |
3×(G)1.5 |
0.7 |
1.1 |
9.8 |
145 |
MTX400-1RMZ1-R-3C2.5(3G2.5) |
3×(G)2.5 |
0.7 |
1.1 |
10.7 |
180 |
MTX400-1RMZ1-R-3C4 |
3×4 |
0.9 |
1.2 |
12.9 |
245 |
MTX400-1RMZ1-R-3C6 |
3×6 |
0.9 |
1.3 |
14.7 |
345 |
MTX400-1RMZ1-R-3C10 |
3×10 |
0.9 |
1.3 |
16.6 |
490 |
MTX400-1RMZ1-R-3C16 |
3×16 |
0.9 |
1.4 |
19.5 |
755 |
MTX400-1RMZ1-R-3C25 |
3×25 |
0.9 |
1.6 |
22.7 |
1095 |
MTX400-1RMZ1-R-3C35 |
3×35 |
0.9 |
1.6 |
24.9 |
1340 |
MTX400-1RMZ1-R-3C35S |
3×35 (扇形) |
0.9 |
1.6 |
22.0 |
1320 |
MTX400-1RMZ1-R-3C50 |
3×50 |
1.0 |
1.6 |
27.1 |
1750 |
MTX400-1RMZ1-R-3C50S |
3×50 (扇形) |
1.0 |
1.6 |
24.8 |
1820 |
MTX400-1RMZ1-R-3C70S |
3×70 (扇形) |
1.1 |
2.0 |
29.7 |
2575 |
MTX400-1RMZ1-R-3C95S |
3×95 (扇形) |
1.1 |
2.1 |
33.1 |
3435 |
MTX400-1RMZ1-R-3C120S |
3×120 (扇形) |
1.2 |
2.2 |
36.0 |
4070 |
MTX400-1RMZ1-R-3C150S |
3×150 (扇形) |
1.4 |
2.4 |
40.9 |
5435 |
MTX400-1RMZ1-R-4C1.5(4G1.5) |
4×(G)1.5 |
0.7 |
1.1 |
10.5 |
170 |
MTX400-1RMZ1-R-4C2.5(4G2.5) |
4×(G)2.5 |
0.7 |
1.2 |
11.8 |
225 |
MTX400-1RMZ1-R-4C4 |
4×4 |
0.9 |
1.3 |
14.7 |
335 |
MTX400-1RMZ1-R-4C6 |
4×6 |
0.9 |
1.3 |
16.0 |
425 |
MTX400-1RMZ1-R-4C10 |
4×10 |
0.9 |
1.4 |
18.3 |
625 |
MTX400-1RMZ1-R-4C16 |
4×16 |
0.9 |
1.5 |
21.5 |
935 |
MTX400-1RMZ1-R-4C25 |
4×25 |
0.9 |
1.6 |
24.4 |
1345 |
MTX400-1RMZ1-R-4C35 |
4×35 |
0.9 |
1.7 |
27.5 |
1715 |
MTX400-1RMZ1-R-4C35S |
4×35 (扇形) |
0.9 |
1.7 |
24.3 |
1700 |
MTX400-1RMZ1-R-4C50 |
4×50 |
1.0 |
1.6 |
29.9 |
2400 |
MTX400-1RMZ1-R-4C50S |
4×50(扇形) |
1.0 |
1.6 |
27.3 |
2300 |
MTX400-1RMZ1-R-4C70S |
4×70(扇形) |
1.1 |
2.1 |
32.8 |
3250 |
MTX400-1RMZ1-R-4C95S |
4×95(扇形) |
1.1 |
2.2 |
37.3 |
4390 |
MTX400-1RMZ1-R-5C1.5(5G1.5) |
5×(G)1.5 |
0.7 |
1.2 |
11.7 |
205 |
MTX400-1RMZ1-R-5C2.5(5G2.5) |
5×(G)2.5 |
0.7 |
1.2 |
12.8 |
265 |
MTX400-1RMZ1-R-5G4 |
5G4 |
0.9 |
1.2 |
15.2 |
360 |
MTX400-1RMZ1-R-6C1.5 |
6×1.5 |
0.7 |
1.2 |
12.7 |
240 |
MTX400-1RMZ1-R-7C1.5 |
7×1.5 |
0.7 |
1.2 |
12.7 |
260 |
MTX400-1RMZ1-R-8C1.5 |
8×1.5 |
0.7 |
1.2 |
15.5 |
340 |
MTX400-1RMZ1-R-10C1.5 |
10×1.5 |
0.7 |
1.3 |
16.2 |
390 |
MTX400-1RMZ1-R-12C1.5 |
12×1.5 |
0.7 |
1.4 |
16.9 |
440 |
MTX400-1RMZ1-R-16C1.5 |
16×1.5 |
0.7 |
1.4 |
18.6 |
550 |
MTX400-1RMZ1-R-19C1.5 |
19×1.5 |
0.7 |
1.5 |
19.7 |
620 |
MTX400-1RMZ1-R-24C1.5 |
24×1.5 |
0.7 |
1.6 |
22.9 |
800 |
MTX400-1RMZ1-R-5C2.5 |
5×2.5 |
0.7 |
1.2 |
12.9 |
290 |
MTX400-1RMZ1-R-7C2.5 |
7×2.5 |
0.7 |
1.2 |
14.6 |
390 |
MTX400-1RMZ1-R-12C2.5 |
12×2.5 |
0.7 |
1.4 |
18.7 |
610 |
MTX400-1RMZ1-R-19C2.5 |
19×2.5 |
0.7 |
1.5 |
21.8 |
870 |
MTX400-1RMZ1-R-24C2.5 |
24×2.5 |
0.7 |
1.6 |
25.6 |
1100 |
MTX400-1RMZ1-R-27C2.5 |
27×2.5 |
0.7 |
1.7 |
26.1 |
1200 |
MTX400-1RMZ1-R-37C2.5 |
37×2.5 |
0.7 |
1.9 |
29.2 |
1560 |
